NDS Transmission Trolley Jack - Gearbox Jack 500kg - Hydraulic Low JL-TLTS050
So you do not have a vehicle hoist.... or even worse than that the vehicle wont fit on the Hoist.... But now you have to get the transmission or Differential out of it and repair and stick it back in again.
Or maybe you know how hard it is to balance that transmission on your normal jack... it never really works properly!!
Your chest is still aching where the last one fell on you as well!!
If you are underneath that vehicle... then this machine will make an easy One Man operation
Rated at 500kg... which is more than enough for most automobile gearboxes that we know of... this Jack will assist you to remove and of course re-install gearboxes... and Differentials , transfer Boxes and the like to the underside of most vehicles.

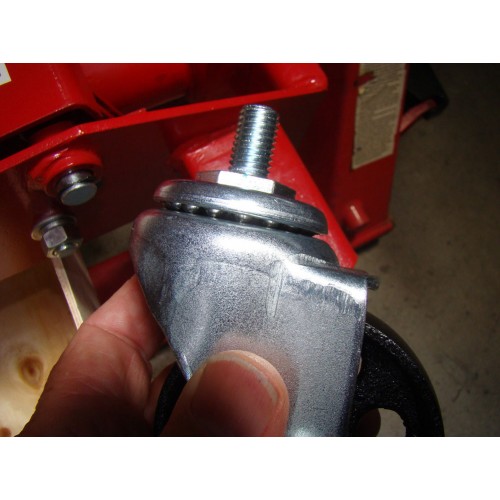

Standing on four cast iron wheels the machine stands firm.The two fixed wheels are 85mm and the ball bearing swivel wheels are 70mm
The Rod operated Jack is exceptionally easy to operate and lifts the saddle of the machine to a height off the ground of 500mm.
The Jack handle mechanism can be rotated 360 deg
The raise - lower tap sits to the left of the jacking mechanism and can adjust the speed of lowering.... Most important when extracting a gearbox as you well know
The lowered height is measured as 165mm to the securing plate or saddle.... and of course the Gearbox/ Diff sits on top of that.

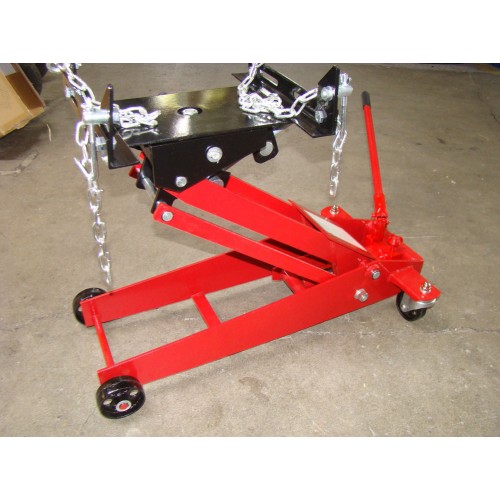

The equipment that you are lifting / lowering is secured onto the saddle using a twin adjustable chain system.
The Saddle is able to be tilted forward and backwards to allow you to line up the gearbox etc.
The saddle can also be moved left and right using an adjusting knob.
The Load is lowered via an easy operated hand twist knob to give you precise control.
Please have a look at our online video on You Tube at ; Click on the link below:
(Cut and paste the link into your Browser)
SPECIAL NOTE : All Units require shipping unless you are picking up from our Depot. Please use the email / contact us facilty when going through Check out to enquire about this.
