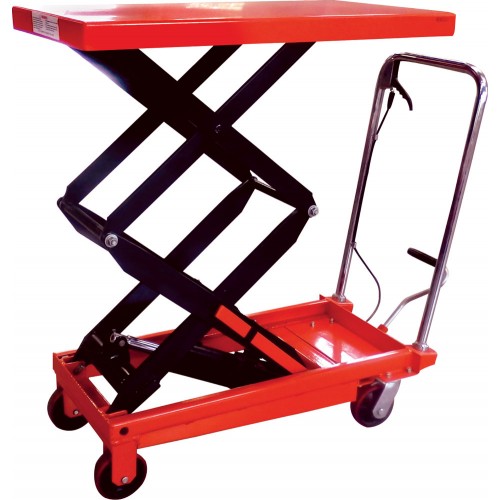

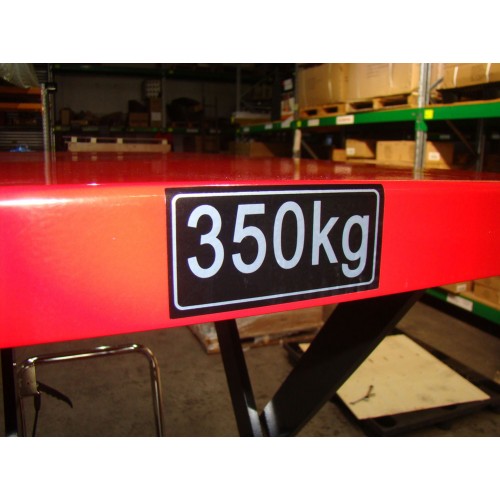

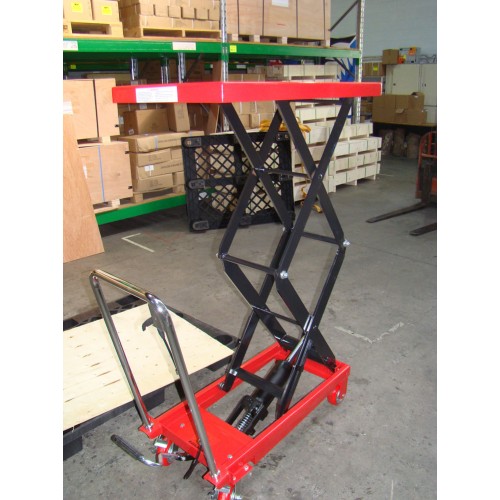

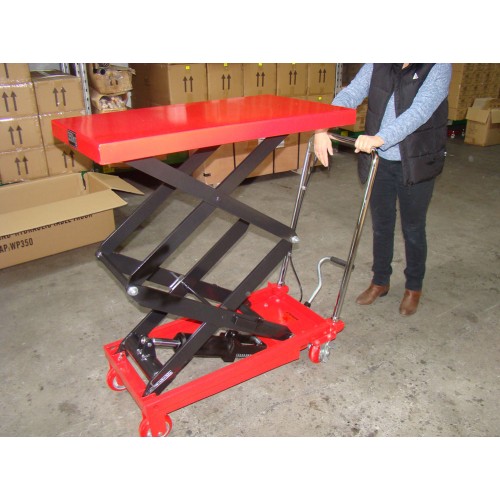

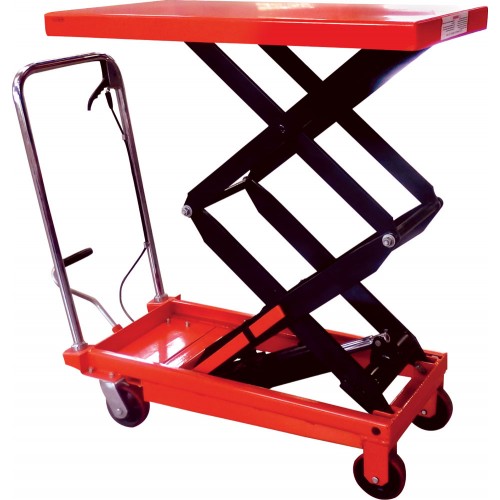

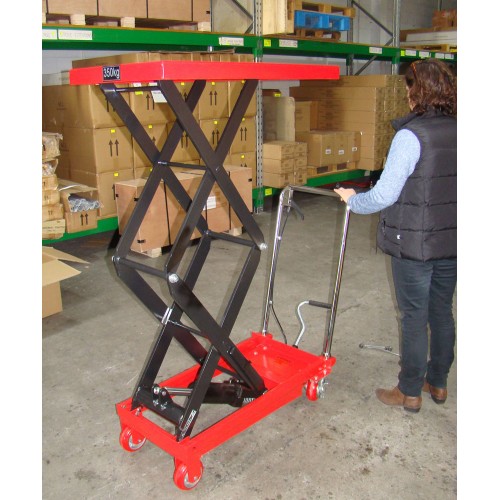

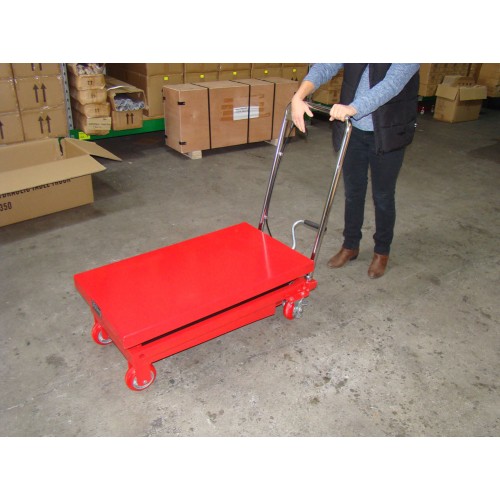

Hydraulic Double Scissor Lift Table 350KG - 1.5m lift
NIULI Item # WP350
We are really delighted to bring this quality piece of equipment to market in New Zealand.
Its not a budget item.
Its built strong and tough with all the right parts in the right places.

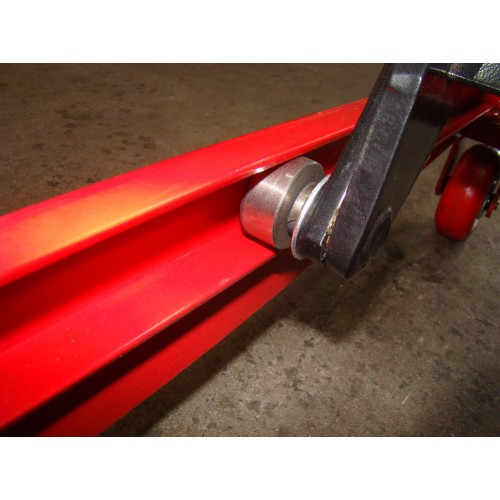

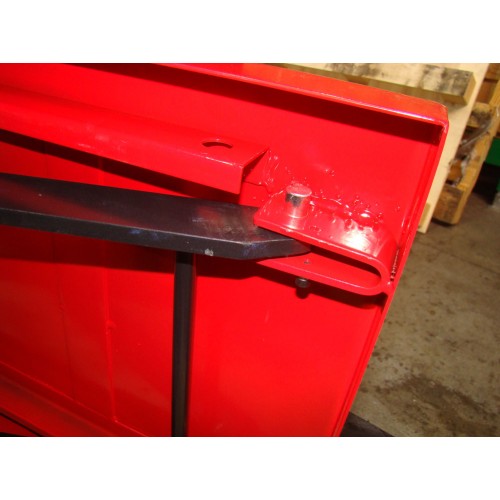

Roller bearings where needed and safety bars that operate as a lock when fully raised.
The foot operated lifting arm is tough… its not going to bend on your first pump of the hydraulic ram and the Ram Release Lever to drop the platform is not going to break off on your first pull of the trigger.
Quality gear made by leading manufacturer Niuli . Built to last!!
Click on his link to see the item in action
Foot operated Hydraulic Pump with Hand control Release Trigger
Dual Braked steering wheels
High Grade Steel Chassis – Fully Welded
Powder Coated for corrosion protection
Polyurethane Wheels - Hard wearing yet ideal for delicate floors surfaces, non-marking and quiet in operation

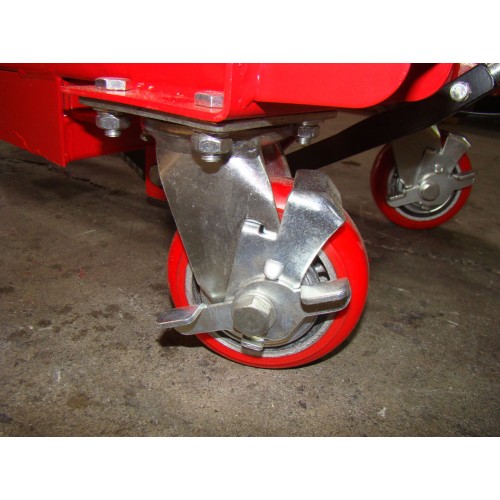

Twin PU Rear Steering Wheels 127mm x 50mm (with Brake facility)
Twin PU front Wheels 127mm x 50mm
Handle Height 970mm
Platform size : 910mm x 500mm x 50mm x 3mm steel top

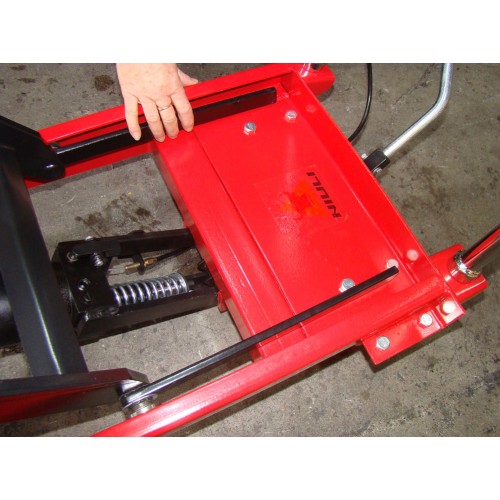

The Steel supports for the scissors raising section is made from 50mm x 12mm steel sections for extra rigidity and strength.
Maximum raised height from floor : 1550mm (1.5M)
Minimum Height Lowered : 350mm
Lifting Height (the movement range of the table ): 1200mm
Overall Length of unit : 980mm
Lifting Platform is 3.5mm Steel Plate
Frame and chassis is 5mm Steel
N.W 105 kg – She's heavy!
Carton size: 1100mm x 520mm x 37mm
Note the item is brand new and unsed, but due to heavy freight issues it may have the odd handling mark as it is loaded on and off trucks on its way to your destination.
A small amount of assembly is required. The Push Handle needs to be secured using the Bolts and Washers (19mm Socket / Spanner) and the Hydraulic Pump Handle needs to be secured (13mm Spanner)
We offer a 12 Month RTB (Return to Base) warranty on this item
